How to Fix AI-Generated 3D Model Topology in Blender (Step-by-Step)

Every image-to-3D generator on the market — ours included — outputs a mesh built for looking at, not for editing. You will get a dense triangle soup with no edge flow, some non-manifold geometry, normals that disagree with each other, and a UV layout that exists only to hold the one texture the generator baked. That is not a bug in any particular tool. It is what diffusion-based and photogrammetry-adjacent reconstruction produces, and no vendor's marketing page will tell you so.

Most tutorials on this subject are written by tool vendors, which is exactly why they stop at "import your GLB and start rendering." This one doesn't. Below is the full Blender pipeline we actually use — audit, repair, decide, retopologize, fix shading, rebuild UVs, export — with named operators, real poly targets, and honest time estimates. It ends with the part nobody publishes: the jobs where an AI-generated mesh is not worth fixing, and you should model it by hand or buy it.

Everything here is written against Blender 5.2 LTS (released 14 July 2026). If you are on 4.5 LTS — supported until July 2027 and still the right choice for a locked production — every step works identically except where noted.

What bad topology actually looks like in an AI-generated mesh

Before you fix anything, it helps to know precisely what you are looking at. Two of the defects are genuinely expensive to fix:

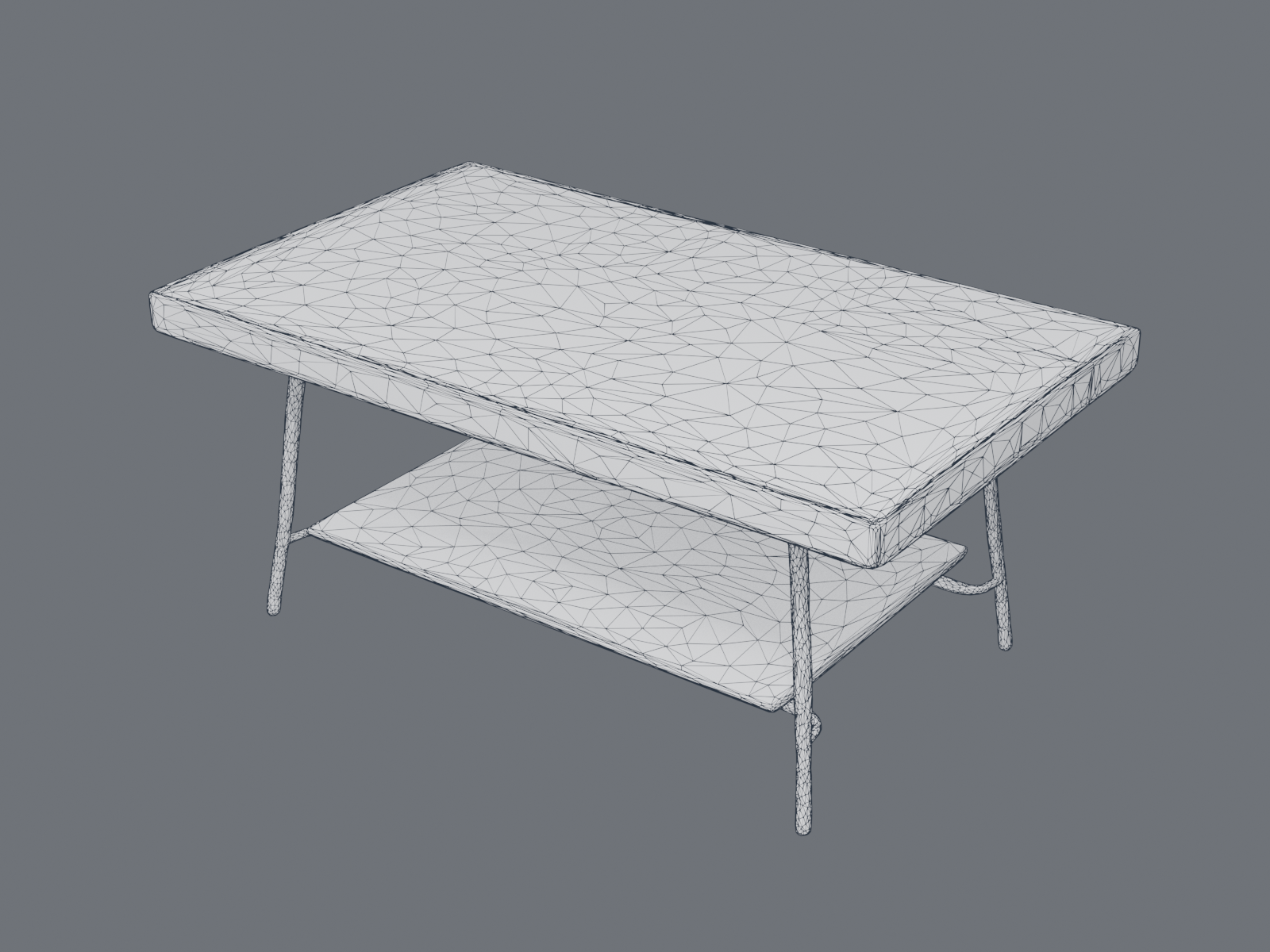

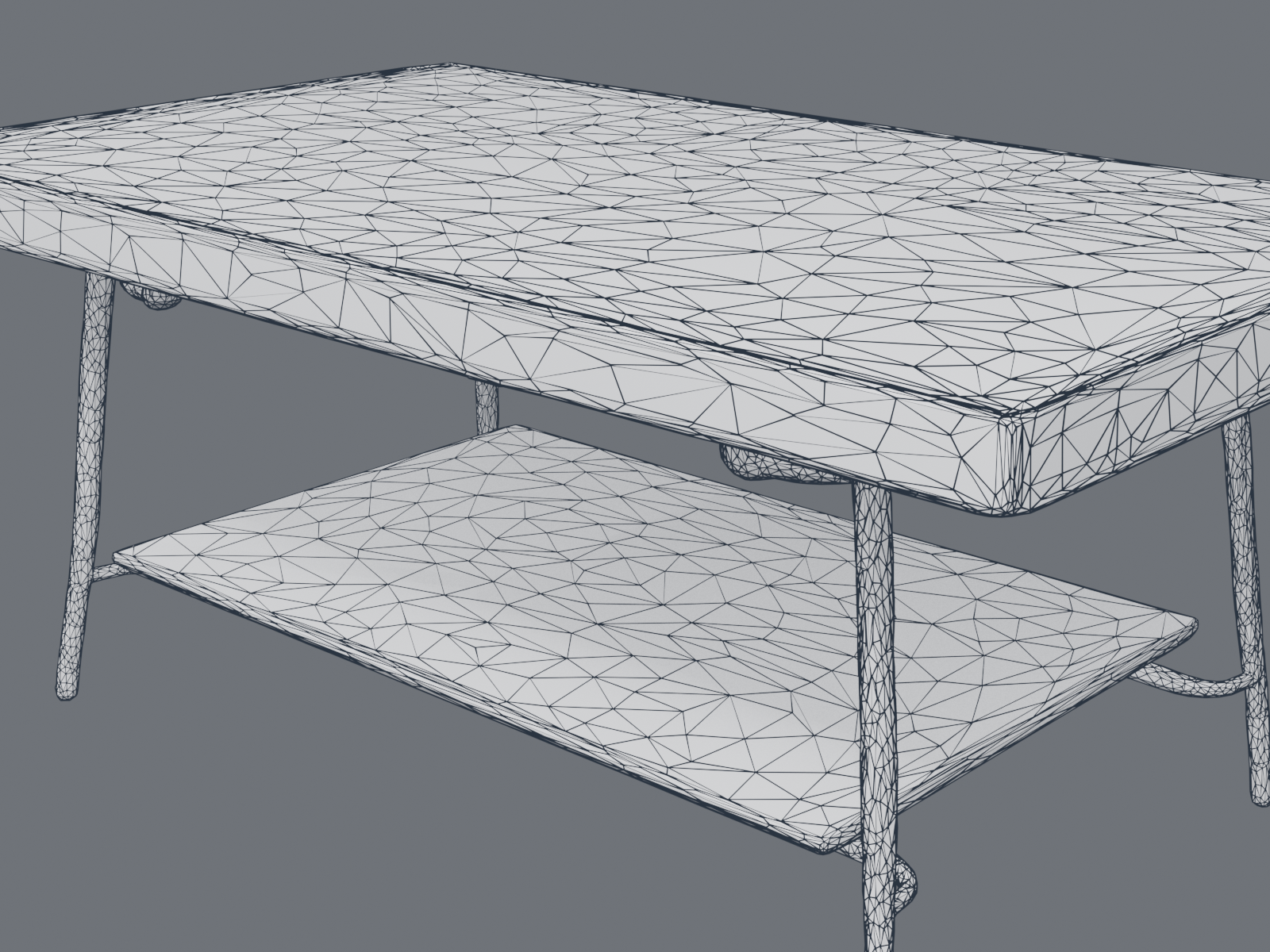

1. Triangle density unrelated to the form, no edge flow. The mesh is tessellated to fit a surface, not to describe a shape. Look at the render above: the flat tabletop carries hundreds of triangles where two would do, while the thin legs are packed so tightly they read as solid. Density follows the reconstruction's guesswork, never the edges that matter. There are no edge loops following the form, so you cannot select a loop, cannot bevel an edge cleanly, and cannot subdivide without the shape wobbling.
2. Non-manifold geometry. In principle: internal faces left from the reconstruction volume, edges shared by three or more faces, zero-area faces, and vertices joining two otherwise separate shells. In practice, expect boundary edges — both models we tested returned open shells with zero interior geometry (see Step 2). Booleans fail, Solidify produces garbage, and 3D printing or CNC is off the table entirely.

The rest are a five-minute pass that most people skip and then blame the generator for: ngons and degenerate faces from the tri-to-quad conversion, inconsistent or inverted normals, smoothing artifacts (sometimes the normals, sometimes custom split normal data the generator wrote), throwaway UVs that exist only to carry the one baked texture, and a normalised size that has nothing to do with the real object. The table below pairs each defect with its fix and what it costs you.

Step 1 — Audit before you touch anything

Resist the urge to start deleting geometry. Two minutes of measurement tells you whether this is a five-minute job or a two-hour one, and that decision governs everything after it.

Fix the transform first

Import the GLB or OBJ, select the object, and open the N-panel Item tab. Set the real-world dimensions — a floor lamp is roughly 1.5 m tall, a coffee table around 0.4 m. Both models we tested arrived with their transform already applied (scale exactly 1,1,1) but normalised to roughly one unit across, so the numbers look tidy while meaning nothing. Then Object → Set Origin → Origin to Geometry, and Ctrl+A → All Transforms. Do this now. Every remesher, every modifier, and every UV operation downstream behaves differently at a non-unit scale, and chasing that bug later is miserable.

Turn on the Statistics overlay

In the viewport, open the Overlays dropdown and enable Statistics. You now see live vert/edge/face/tri counts. Note the triangle count — it is your baseline, and do not assume you know it in advance. We ran one coffee-table photo through both of Visiomake's image-to-3D models: Trellis returned 19,588 triangles, Hunyuan3D 3.1 returned 500,000 — a 25x spread from the same reference image. A competent modeller would build that form in around 2,000 triangles, because a modeller puts edges only where the form needs them; an automatic remesher spreads them evenly, which is why Step 4 needs several times that count on the same object. Which model you picked matters more to this number than what you photographed.

Install and run the 3D Print Toolbox audit

The fastest diagnostic available was written for a different purpose. 3D Print Toolbox is no longer bundled with Blender — since 4.2 it lives on the extensions platform. Install it from Edit → Preferences → Get Extensions and search for "3D Print Toolbox", then find the 3D Print tab in the N-panel and hit Check All.

You will get counts for non-manifold edges, bad contiguous edges, intersecting faces, zero-area faces, and thin geometry. You do not care about the printability verdict. You care about the numbers, because they tell you which branch to take in Step 3. Click any result to select the offending geometry in the viewport and see where the problems are — if they cluster in one region (usually thin or concave detail), a local repair will do; if they are scattered across the whole surface, you are retopologizing.

Count the ngons

In Edit Mode, face-select mode, Select → Select All by Trait → Faces by Sides, then in the operator panel set Number of Vertices to 4 and Type to Greater Than. The header shows how many were selected.

Look at the UVs

Switch to the UV Editing workspace, select all in Edit Mode, and look. If you see a fragmented confetti of islands at wildly different scales, the UV map is a texture-transport format, not a workable layout. Plan to delete it — Step 7 covers what to do instead.

Step 2 — The five-minute cleanup pass every AI mesh needs

Run this on every AI-generated mesh, regardless of what you decide later. It is cheap, it is safe, and it removes the noise that makes the real diagnosis harder. In Edit Mode with everything selected (A):

1. Merge by Distance — M → By Distance. Start at the default 0.0001 m. Check the header report for how many vertices were removed. If it removed thousands, the mesh had a lot of split geometry; nudge the threshold up slightly, but stop before the form starts collapsing.
2. Delete Loose — Mesh → Clean Up → Delete Loose, with verts, edges, and faces all enabled. This clears the floating debris that reconstruction leaves behind.
3. Degenerate Dissolve — Mesh → Clean Up → Degenerate Dissolve. Removes zero-area faces and zero-length edges, which are a common source of shading artifacts that look like a normals problem but aren't.
4. Recalculate Normals — Shift+N. On a closed shell this is reliable. On an open shell — a mesh with boundary edges — Blender has to guess what "outside" means and sometimes guesses wrong, so check the result with the Face Orientation overlay on.
5. Clear Custom Split Normals Data — this one is not in the Object menu, which trips up almost everybody. It lives in Object Data Properties → Geometry Data → Clear Custom Split Normals Data (the green triangle-mesh tab in the Properties editor). Many generators write custom normal data to fake smoothing on a low-quality mesh, and it will fight every shading fix you attempt until you remove it. Of the two models we tested, Hunyuan3D 3.1 ships custom split normals and Trellis does not — so check rather than assume.

Now turn on Face Orientation in the Overlays dropdown. Everything should be blue. Any red is a face pointing inward: select it and Shift+N, or Alt+N → Flip for a targeted fix.

Then attempt Make Manifold

Back in the 3D Print tab, under Clean Up, click Make Manifold. It is worth knowing what this single button actually does, because it overlaps most of the list above: it deletes loose geometry, deletes interior faces, merges doubles at 0.0001 m, fixes non-manifold vertices by filling them as holes, and recalculates normals outward — looping until no non-manifold vertices remain.

In our own testing, that interior-face deletion found nothing to do. Both Trellis and Hunyuan3D 3.1 returned open shells with no interior geometry at all — every single non-manifold edge was a boundary edge (5,292 of them on the Trellis mesh, 65,588 on the Hunyuan one). So on this kind of output Make Manifold is doing almost nothing except filling holes, which is precisely the part you have to watch.

Be honest about what the rest of it means, though: hole-filling is a heuristic, not a repair that understands your object. On a lamp shade's open rim it will happily cap the opening you wanted. Run it, then look at the result from several angles before you accept it. If it destroyed intended openings, undo, and instead select the problem geometry manually with Select → Select All by Trait → Non Manifold — available in vertex and edge select modes only — and fix those regions by hand with F to fill and X → Dissolve Edges to remove the bad ones.

Step 3 — Decide: clean up, or retopologize?

This is the decision that saves or wastes your afternoon, and it comes down to one question: does anything downstream need the edge flow?

Cleanup is enough — stop after Step 2, fix shading and UVs, ship it — when the asset is:

• background or mid-ground set dressing in a still render;
• a one-off prop the client will never see up close;
• going into a scene where poly count is not a constraint and you will never deform it.

You need real retopology when the asset will be:

• rigged, animated, or deformed in any way;
• subdivided, or given clean bevels and chamfers;
• a hero object holding a close-up shot;
• handed to a real-time engine with a poly budget;
• UV-unwrapped for tiling or procedural materials rather than a single baked texture.

And here is the part the tool vendors leave out. Some jobs should not start from an AI mesh at all. If you need dimensional accuracy — anything heading for fabrication, joinery, CNC, or a drawing set — do not use a reconstruction. The generator is inferring a plausible shape from a photograph; it is not measuring anything. The proportions will look right and be wrong by centimetres. Model it from the spec sheet.

Likewise for hard-surface objects defined by precise, crisp edges — a machined bracket, a mullion profile, a piece of trim. Reconstruction rounds those edges, and recovering them costs more than modelling the part from scratch. And for anything that will be rigged and deformed, budget for full manual retopology from the outset; automatic remeshers do not produce the loops a deformation needs.

Where AI reconstruction genuinely wins is the long tail: the specific client-owned piece that exists in no asset library, the vintage chest the client photographed on holiday, the custom joinery from a supplier PDF. If you are still choosing a generator, our head-to-head of the current field — Meshy, Tripo, Rodin and Trellis compared for archviz — covers how each one's raw mesh output actually behaves, which is what determines how much of this guide you end up needing.

Step 4 — Automatic retopology (covers most cases)

For props and set dressing, automatic remeshing gets you 90% of the way in a fraction of the time. Blender ships two algorithms and they are not interchangeable.

QuadriFlow Remesh

This one is not in the Object menu either. In Object Mode, go to Properties → Object Data Properties → Remesh, set Mode to Quad, and click QuadriFlow Remesh. A popup appears — set its Mode to Faces to expose the Number of Faces field, which is the control you actually want.

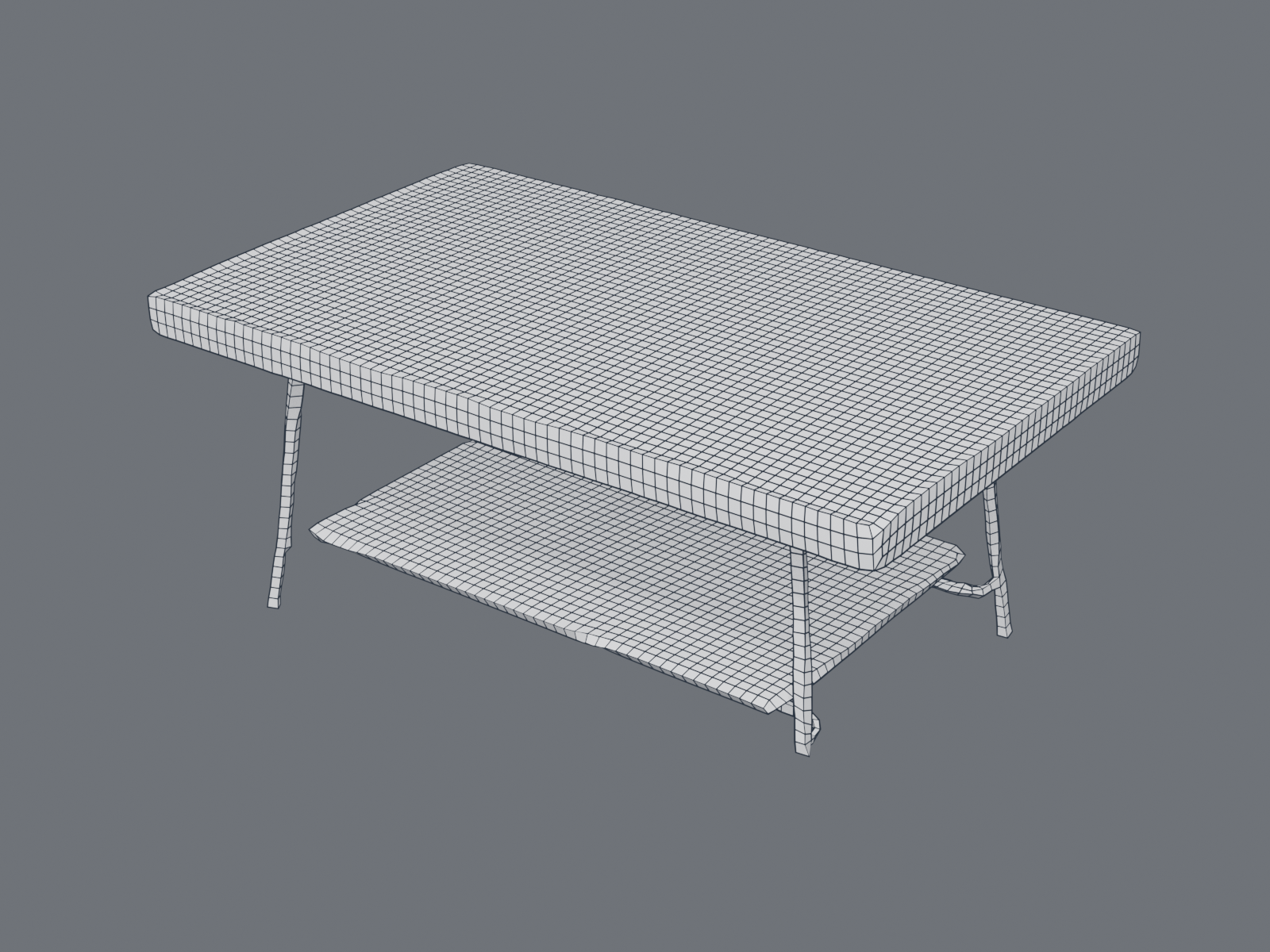

QuadriFlow generates an all-quad mesh that follows the original surface, so edge flow roughly tracks the form's curvature — vastly better than voxels for anything you intend to keep editing. It is slower, and critically it does not clean up intersecting geometry, so clear self-intersections with a voxel pass first — Check All will report intersecting faces but the toolbox does not repair them — otherwise you remesh the errors along with the object.

Set Number of Faces as your target quad count, not triangles. And judge the target by the thinnest element you need to keep, not by how simple the silhouette looks — thin geometry is what sets the floor.

We learned that the hard way on the test object for this article, a coffee table with a flat top and slim metal legs. At 3,000 quads QuadriFlow deleted three of the four legs outright; at 6,000 they were still truncated; the object only came back whole at 10,000. Practical starting points for archviz furniture and decor:

• flat or blocky forms with no thin elements (a plinth, a slab table, a planter): 2,000–5,000 quads
• anything with legs, stems, thin frames or hardware: roughly 10,000 quads
• hero close-up object: this is where QuadriFlow stops being the answer — go manual, or use Quad Remesher

That last point is not us being purist. There is a ceiling. On our roughly one-metre test object, 16,000 quads shattered the surface into disconnected islands rather than adding useful density — 17 of them, against 3 at 10,000. We did not test anything between those two values, so we cannot tell you where the ceiling actually sits, only that there is one and that it is closer than you would guess. Treat that as a property of this object rather than a law, but check for fragmentation before assuming more faces means more fidelity. To count islands, duplicate the remeshed object, enter Edit Mode, select all and press P → By Loose Parts, then read how many objects appear in the Outliner — delete the duplicate afterwards.

After any remesh, check the object's dimensions against the original: if the bounding box got shorter, a thin part has been eaten. That one check is the cheapest safeguard in this whole guide.

Enable Preserve Sharp for hard-surface objects. Remesh, then compare against the original silhouette from a few angles — if detail has melted, raise the target and try again rather than accepting a mushy result, checking the island count as you go so you do not climb past the fragmentation point described above.

Voxel Remesh

Same panel, Mode: Voxel. Voxel remeshing rebuilds the object as a uniform grid at a given voxel size. It is fast, it reliably produces watertight, manifold geometry, and it will destroy edge flow and soften every sharp corner.

Use it as a repair tool, not a retopology tool: when a mesh is so badly broken that Make Manifold cannot save it, voxel remesh at a fine voxel size to force it watertight, then run QuadriFlow on the result. Two passes, but it rescues meshes that nothing else will. Prefer the Voxel mode in this panel over the Remesh modifier: the modifier's Voxel mode is the same OpenVDB operation, but the panel exposes Fix Poles, Preserve Volume, and attribute preservation that the modifier does not.

Paid alternative

If you do this weekly, Exoside's Quad Remesher add-on produces noticeably better edge flow than QuadriFlow, particularly around cylindrical and conical forms — the stem-and-shade geometry of a lamp is a good stress test. It is a commercial add-on sold as a perpetual licence (around $110 for a single host application such as Blender, or $140 to cover all supported hosts, at the time of writing); whether it pays for itself depends entirely on your volume.

Always finish with a shrinkwrap check

Any remesher trades detail for topology. Add a Shrinkwrap modifier to your new mesh targeting the original, mode Nearest Surface Point, and you recover surface detail the remesh rounded off. Apply it, keep the original hidden in the scene until the job ships, and delete it afterwards.

Step 5 — Manual retopology, when it actually matters

For a hero asset or anything that deforms, no automatic tool substitutes for drawing the loops yourself. Blender's built-in workflow is adequate — this is not the fastest path in the industry, but it is free and it ships with the software.

Set it up like this:

1. Hide nothing. Keep the AI mesh visible as your reference surface.
2. Create a new empty mesh object (Shift+A → Mesh → Plane, then delete its vertices in Edit Mode).
3. Turn on the Retopology overlay in the Overlays dropdown. It offsets your new geometry in front of the reference so it stops z-fighting — this replaced the old "in front + offset" fiddling and is far more pleasant.
4. In the Snapping dropdown: snap to Face, set Snap Base to Closest, and under Snap Target for Individual Elements choose Face Project. (If you learned this workflow a few versions ago, these are the controls formerly called "Snap With" and "Project Individual Elements" — renamed, same job.) Every vertex you place now lands on the reference surface.
5. Use the Poly Build tool from the toolbar — Ctrl-LMB to extend, Shift-LMB to delete the element under the cursor. The F2 extension improves F-key face filling considerably; like the 3D Print Toolbox, it is installed from Preferences → Get Extensions rather than shipping enabled.

Work in the order the form dictates: establish the major loops first — around the rim of a shade, the perimeter of a tabletop, the join between stem and base — then fill the spans between them. Keep quads. Where you must transition density, use a proper loop termination rather than scattering triangles.

Budget two to four hours for a moderately complex furniture piece. That is the honest number, and it is why Step 3's decision matters so much. If you find yourself hand-retopologizing a background prop, you took the wrong branch three steps ago.

If Blender's native tools are too slow for how often you do this, RetopoFlow is the established commercial add-on and is a genuine productivity difference for repeat work.

Step 6 — Fix shading and normals properly

By now the geometry is sound but the object may still shade badly. Work through these in order, because doing them out of order produces confusing results.

1. Clear Custom Split Normals Data if you have not already — Object Data Properties → Geometry Data. Skip this and everything below is fighting data you can't see.
2. Recalculate outside — Edit Mode, select all, Shift+N. Verify with the Face Orientation overlay.
3. Shade Auto Smooth — Object Mode, right-click → Shade Auto Smooth. Since Blender 4.1 this is no longer a mesh property: it adds a Smooth by Angle geometry-nodes modifier to the object, and you adjust the angle in the modifier stack rather than in Object Data Properties. If you learned Blender on 4.0 or earlier and have been hunting for the old Auto Smooth checkbox under Normals, that is why it is gone.
4. Tune the angle. The 30° default is a general-purpose compromise. For furniture with defined edges, 20–25° keeps corners crisp. For soft organic forms, push to 40°.
5. Handle remaining ngons. If the mesh is still triangulated and shading badly, select all and Alt+J (Face → Triangles to Quads); raise the Max Shape Angle if too few merge. On a QuadriFlow result this should be unnecessary.

If a specific area still shades wrong after all five, it is geometry, not normals: look for overlapping coplanar faces or a fold in the surface. Isolate the region and rebuild it.

Step 7 — Rebuild the UVs on your retopologized mesh

This is the step most people skip, and then wonder why they can't put a different fabric on the shade.

The UV map that arrived with the model is a delivery mechanism for the generator's own baked texture. Its islands are fragmented, unevenly scaled, sometimes overlapping. It works for exactly one thing: displaying the texture it came with. The moment you want to tile a material, swap a finish, apply a decal, or bake anything, it is a liability. And if you retopologized in Step 4 or 5, those UVs are gone anyway — they belonged to a mesh that no longer exists.

Unwrap the clean mesh

On your clean mesh, add a fresh UV map in Object Data Properties → UV Maps, then pick one of two routes:

• Fast route — Smart UV Project (U → Smart UV Project). It picks its own projection directions from the Angle Limit rather than from your seams, so seams only refine the cut here instead of driving it — marking them is optional on this path and essential on the hero route. Set Island Margin to about 0.02 to leave bleed room for baking. Good enough for props and set dressing.
• Hero route — mark seams and unwrap (U → Unwrap Angle Based, the default method). This is the only path where marked seams matter. Put them where a real modeller would: the underside of a tabletop, the inside of a shade, the back of a case piece. Seams in visible areas will show as texture discontinuities.

Either way, check island scale consistency with a checker texture. Wildly different checker densities across the object means your texel density is uneven and the material will read as inconsistent.

Bake the original texture onto the new UVs

Do this before you delete anything — you are baking from the original mesh onto the clean one.

1. Set the render engine to Cycles. The Bake panel does not exist in EEVEE, which is the single most common reason people can't find it.
2. Create and assign a new image texture on the clean mesh, and make sure that image node is the active node in its material.
3. Select the original mesh first, then shift-select the clean mesh last, so the clean mesh is the active object. Selected-to-Active bakes onto the active object — get this backwards and you will bake onto the mesh you are about to throw away.
4. In Render Properties → Bake, enable Selected to Active and set a small ray distance — the field is Max Ray Distance normally, and becomes Extrusion once you enable Cage. Bake Diffuse with Direct and Indirect contributions switched off so you get colour only, then repeat for any normal or roughness map that came with the model.
5. Save the baked images, then delete the original mesh.

Skip the bake only if you were always going to re-texture from scratch. In that case just delete the old UV map and unwrap freely — this is also the point where you would build the PBR material set. The V-Ray-ready workflow for AI-generated furniture models goes deeper on map assignment and material setup on the render-engine side.

Step 8 — Export without undoing your work

A clean mesh exported carelessly arrives dirty. Four things to check every time:

• Apply all transforms — Ctrl+A → All Transforms. Again. You have changed things since Step 1.
• Set the origin deliberately, not to the bounding-box centre by default. For furniture, put it at the base centre so the piece sits on the floor plane when placed. This one detail is the difference between an asset that drops into a scene and one that has to be nudged every time.
• Match the destination's axis convention. Good news for archviz: Blender, 3ds Max, Revit, SketchUp and Rhino are all Z-up, so most of your pipeline agrees already. Maya, Cinema 4D, Unity and the glTF specification are Y-up. The FBX exporter exposes Forward and Up axis dropdowns for this; the glTF/GLB exporter does not — it has a single +Y Up checkbox under Transform, on by default because the spec requires it. Either way, set it in the exporter rather than rotating the mesh.
• Pick the format for the job. GLB embeds geometry and textures in one file and is the right default for web viewers, real-time engines, and handoff. FBX preserves more DCC-specific data. OBJ is the lowest common denominator and carries no material complexity worth relying on.

For SketchUp specifically there are import quirks worth knowing before you export — component structure, scale handling, and material behaviour all differ from a straight GLB drop. We covered them in the guide to importing AI-generated furniture models into SketchUp.

How long this actually takes

Based on our own runs through this pipeline on archviz furniture and decor, rather than on a hand-picked demo asset:

• Background prop, cleanup only — Steps 1, 2, 6, 8. 10–15 minutes. No retopology, keep the original UVs and texture. This branch is only open if your generator gave you a workable count in the first place — a 500,000-triangle reconstruction is not a background prop, whatever it is doing in the scene.
• Mid-ground asset, automatic retopology — add Steps 4 and 7 with a texture rebake. 45–75 minutes, and budget a few extra for the retopology sweep: expect to try two or three quad targets and check the bounding box after each. This is the common case.
• Hero asset, manual retopology — Step 5 instead of Step 4, manual unwrap in Step 7. 3–6 hours.

Now compare that honestly against your alternatives, including where it goes against us. A library asset that fits costs minutes — always check first. A competent modeller will typically spend two to four hours building a simple furniture piece from scratch, so AI reconstruction plus automatic cleanup wins clearly on the mid-ground case.

On hero assets the maths turns against it. You are paying three to six hours to reconstruct and then hand-retopologize the piece — and the retopology alone accounts for two to four of those hours, the same order as modelling it outright. You also end up with a remesher's best guess at edge flow instead of loops you placed deliberately. If the object is going to hold a close-up, model it.

Where reconstruction wins outright is the piece that does not exist in any library. On a project with thirty pieces of client-specific furniture, that is the difference between quoting the job and passing on it.

Reduce the cleanup by improving the input

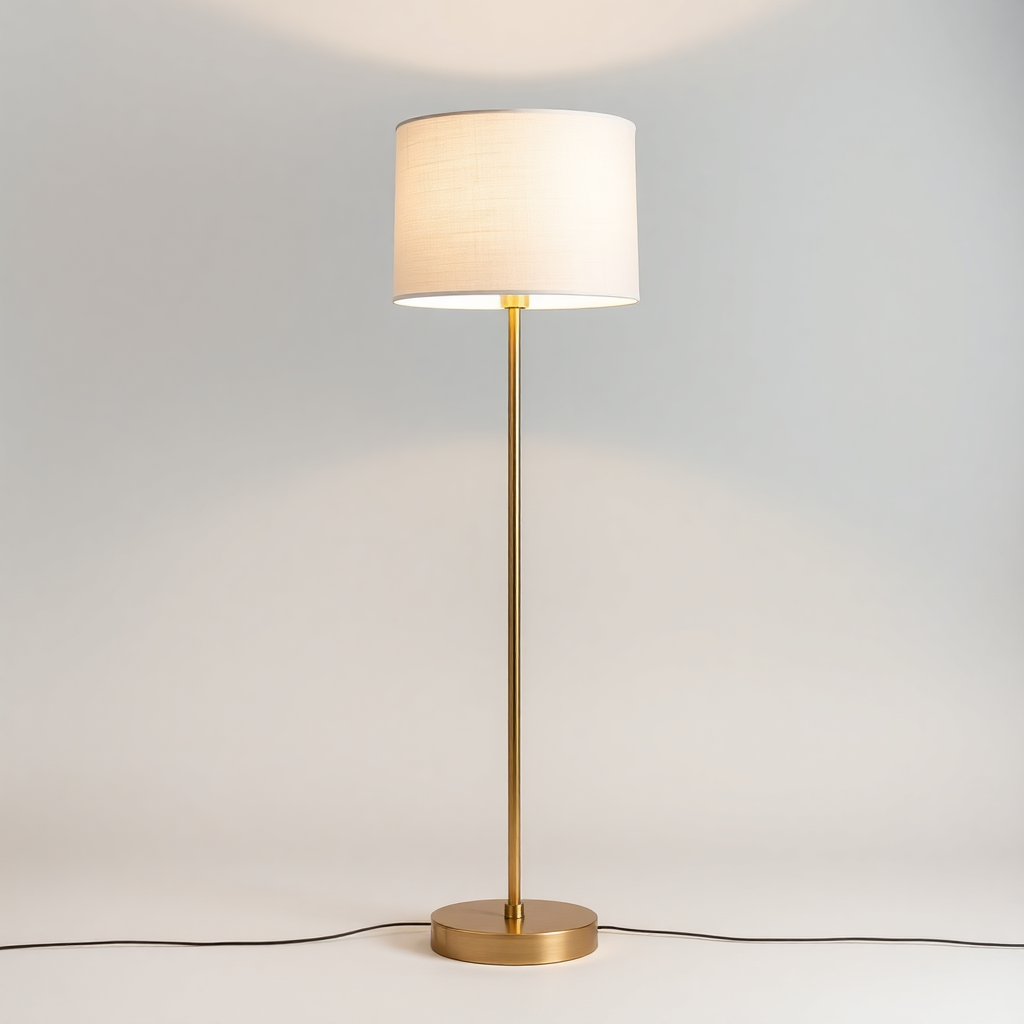

Mesh quality is heavily determined by the reference image, and this is the cheapest lever available:

• Shoot or select the object against a plain, uncluttered background — reconstruction confuses background detail for geometry.
• Prefer even, diffuse lighting. Hard shadows get baked into the mesh as false surface detail.
• A three-quarter view that reveals two faces and the top beats a flat-on elevation every time.
• Avoid transparent, mirrored, and high-gloss surfaces. Reconstruction has no good answer for them and will produce dents and holes where the reflections were.
• Frame the object completely, in focus, filling most of the frame.

Ten seconds picking a better reference routinely saves half an hour of Blender work. If you are comparing which generator handles your kind of subject best before committing, our 2026 comparison of AI tools that turn photos into 3D models tests them on furniture and decor specifically.

The short version

Audit before you cut. Run the five-minute cleanup on everything. Then make one deliberate decision — cleanup or retopology — based on whether anything downstream needs the edge flow, and commit to it. Automatic remeshing handles most archviz work; reserve manual retopology for anything that deforms, and model hero objects from scratch rather than retopologizing them. Rebuild the UVs whenever you intend to re-texture, and bake onto the clean mesh before you delete the source.

And keep the boundary clear in your own head: AI reconstruction is excellent at producing an object that reads correctly, which is exactly what a render needs. It is not measuring anything, so it has no place in work where the numbers have to be right. Used inside that boundary, it turns “we don't have that piece” from a modelling job into a cleanup job.
